Plotting Character Animation With A MotionBuilder Python Script .

Image result for motionbuilder plot to control rig

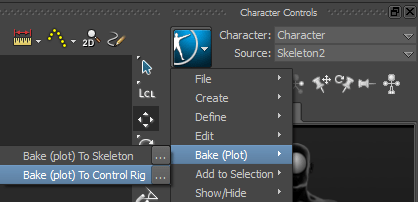

Let’s go over how to use Python to plot animation onto a character’s Control Rig. The interesting part of this is the “plot options” and how we call back on them when we plot.


from pyfbsdk import *

# Defining our Characater as the currnetly selected one
lCharacter = FBApplication().CurrentCharacter

# Defining the Plot option that will be used
PlotCtrlRigTakeOptions = FBPlotOptions()
# To use Constant Key Reduction on the plot (True or False)
PlotCtrlRigTakeOptions.ConstantKeyReducerKeepOneKey = False
# To go through all takes in the scene and plot the data (True or False)
PlotCtrlRigTakeOptions.PlotAllTakes = False
# Do you wish to plot onto frames (True or False)
PlotCtrlRigTakeOptions.PlotOnFrame = True
# Set the plot period
PlotCtrlRigTakeOptions.PlotPeriod = FBTime( 0, 0, 0, 1 )
PlotCtrlRigTakeOptions.PlotTranslationOnRootOnly = False
PlotCtrlRigTakeOptions.PreciseTimeDiscontinuities = False
# What filter to use on the plot (Unroll, GimabalKill or None)
PlotCtrlRigTakeOptions.RotationFilterToApply = FBRotationFilter.kFBRotationFilterUnroll
# Use Constant Kye Reduction (True or False)
PlotCtrlRigTakeOptions.UseConstantKeyReducer = False

# Plotting to the selected character - note "kFBCharacterPlotOnControlRig" and "PlotCtrlRigTakeOptions".
lCharacter.PlotAnimation (FBCharacterPlotWhere.kFBCharacterPlotOnControlRig,PlotCtrlRigTakeOptions )

These are the settings I use when I am processing large motion capture data down to smaller performances.
